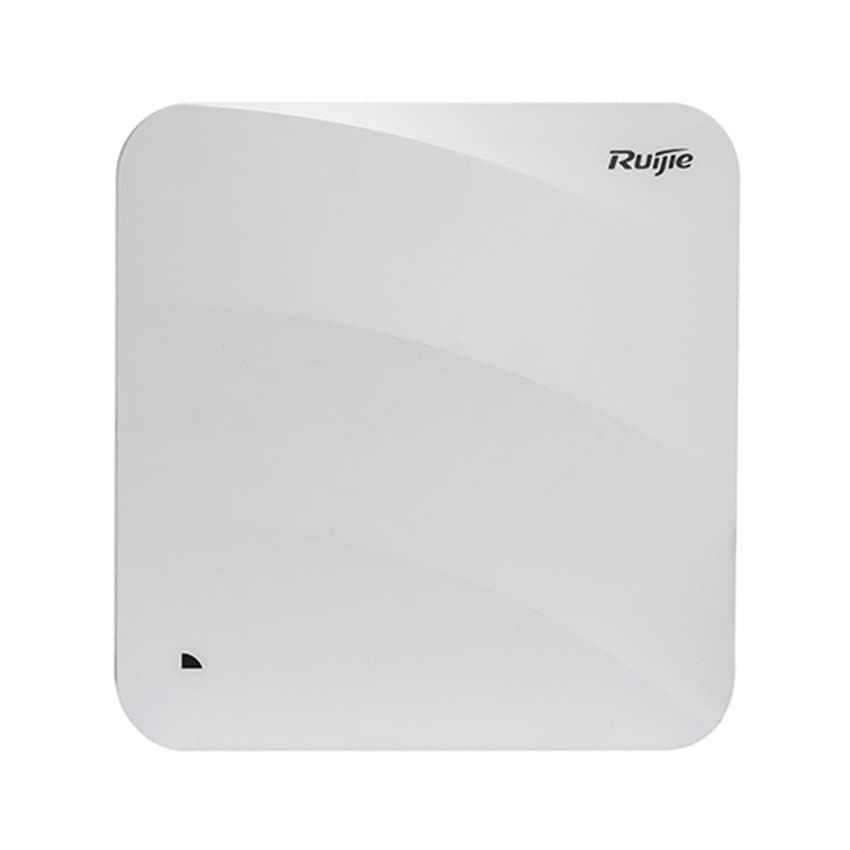

Model | RG-AP840-I |
Radio | Dual-radio dual-band（2.4G+5G）：2.4G 2×2 MIMO + 5G 4×4 MIMO |
Protocol | Supports standard 802.11ax, dual-radio dual-band, concurrent 802.11ax and 802.11a/b/g/n/ac |
Operating Bands | 802.11b/g/n: 2.4G ~ 2.483GHz
802.11a/n/ac/ax: 5.150 ~ 5.350GHz, 5.47 ~ 5.725GHz, 5.725 ~ 5.850GHz (vary depending on different countries) |
Spatial Streams | Up to 6: 2×2:2 in 2.4GHz, 4×4:4 in 5GHz |
Max Throughput | Maximum throughput of 2.4G: 400Mbps
Maximum throughput of 5G: 4.8Gbps
Maximum throughput per AP: 5.2Gbps |
Modulation | OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps,D QPSK@2Mbps, and [email protected]/11Mbps MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM and 1024QAM OFDMA (up to 1024-QAM) |
Antenna | Integrated antenna design |
Antenna Gain | 2.4G: 3dBi
5G: 3dBi |
Service Ports | 3 10/100/1000M Ethernet ports (The LAN1 Port supports PoE in, LAN3 Port supports LAN & IoT module expansion with PoE out) |
Management Port | 1 console port |
USB | 1 USB 2.0 port |
IoT Capability | BLE |
Reset Button | Support |
Anti-theft Lock | Support |
LED Indicator | 1 LED indicator (Supports red, green, blue, orange and flashing mode, which indicates device access. The indicator can be switched off to silent mode.) |
Transmit Power | ≤100mw (20dBm) (vary depending on different countries) |
Adjustable Power | 1dBm |
Power Supply | Local power supply (DC 48V/1A) (Power adapters are sold separately)
PoE+ (802.3at)
PoE (802.3af) – Not recommended: 5G radio is degraded to 2x2 MIMO, and the PoE out of the LAN3/ IoT port is disabled |
Power Consumption | <25.4W |
Temperature | Operating Temperature: -10°C to 50°C |
Humidity | Operating Humidity: 5% to 95% (non-condensing) |
Installation Mode | Ceiling/wall-mountable |
Dimensions | 220 × 220 x 48.85 mm (W x D x H) |
Weight | 1.30kg |
IP Rating | IP41 |
WLAN | Maximum clients per AP |
BSSID capacity | Up to 32 |
SSID hiding | Support |
5G Priority (Band Steering) | Support |
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID | Support |
Remote Intelligent Perception Technology (RIPT) | Support |
Intelligent device recognition technology | Support |
Intelligent load balancing based on the number of users or traffic | Support |
STA control | SSID/radio-based |
Bandwidth control | STA/SSID/AP-based bandwidth control |
Data encryption | WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3, WEP (64/128 bits) |
PSK and web authentication | Support |
PPSK authentication (For Employee) | Support (require wireless controller) |
802.1x authentication | Support |
PEAP authentication | Support |
Data frame filtering | Whitelist, static/dynamic blacklist |
User isolation | Support |
Rogue AP detection and countermeasure | Support |
Dynamic ACL assignment | Support |
RADIUS | Support |
CPU Protection Policy (CPP) | Support |
Network Foundation Protection Policy (NFPP) | Support |
IP | IPv4 and IPv6 address |
Multicast routing | Multicast to unicast conversion |
DHCP service | DHCP Snooping, Option 82, Server, Client |
Management and Maintenance | Supported wireless LAN controllers |
Management protocol | Telnet, SSH, TFTP, Web |
Wireless Intelligent AI Optimization Service (WIS) | Support |
SNMP | SNMPV1,V2c,V3 |
Syslog / Debug | Support |
FAT/FIT/MACC mode switching | Factory default firmware supports FAT (standalone) or FIT mode (WS controller) or MACC mode (Ruijie MACC-Base or Ruijie Cloud) management |
